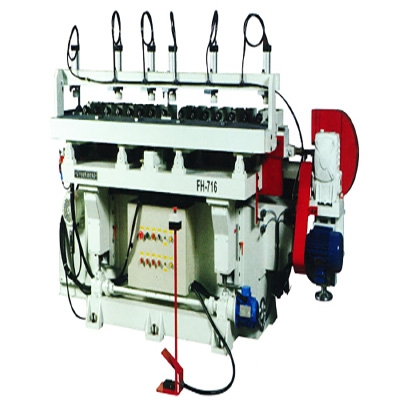

FORMAHERO FH-716 MULTI BORING SLOT MORTISING MACHINE

FEATURES:
  • Slotting length is easily adjustable
  • Table elevation is driven by motor for convenience
  • Upper and lower stroke limits are controlled by limit switch for optimal safety
  • Boring or slotting can be individually controlled
SKU: FH-716 Categories: , ,
Spindle Motor Power 5.5Hp x 2 Units
Hydraulic Pump Motor 2Hp
Oscrllating Motor 2Hp
Table Elevation Motor ½Hp
Table Area 350mm x 2130mm
No. Of Spindles 16 pcs
Stroke Travel 100mm
Oscillation Stroke 0 – 100mm
Minimum Centre Distance Between Spindle 62mm
No. Of Clamping Cylinders 6 pcs
Machine Dimension 2800mm x 1150mm x 1350mm
Nett Weight 2400 Kg
